System Configuration of MASAMUNE-II

MASAMUNE-II consists of supercomputers (HPE Cray XD220v, HPE Scale-up Server 3200, HPE Cray XD670) and a storage system (DDN EXAScaler ES400NVX2) installed by Hitachi, Ltd.

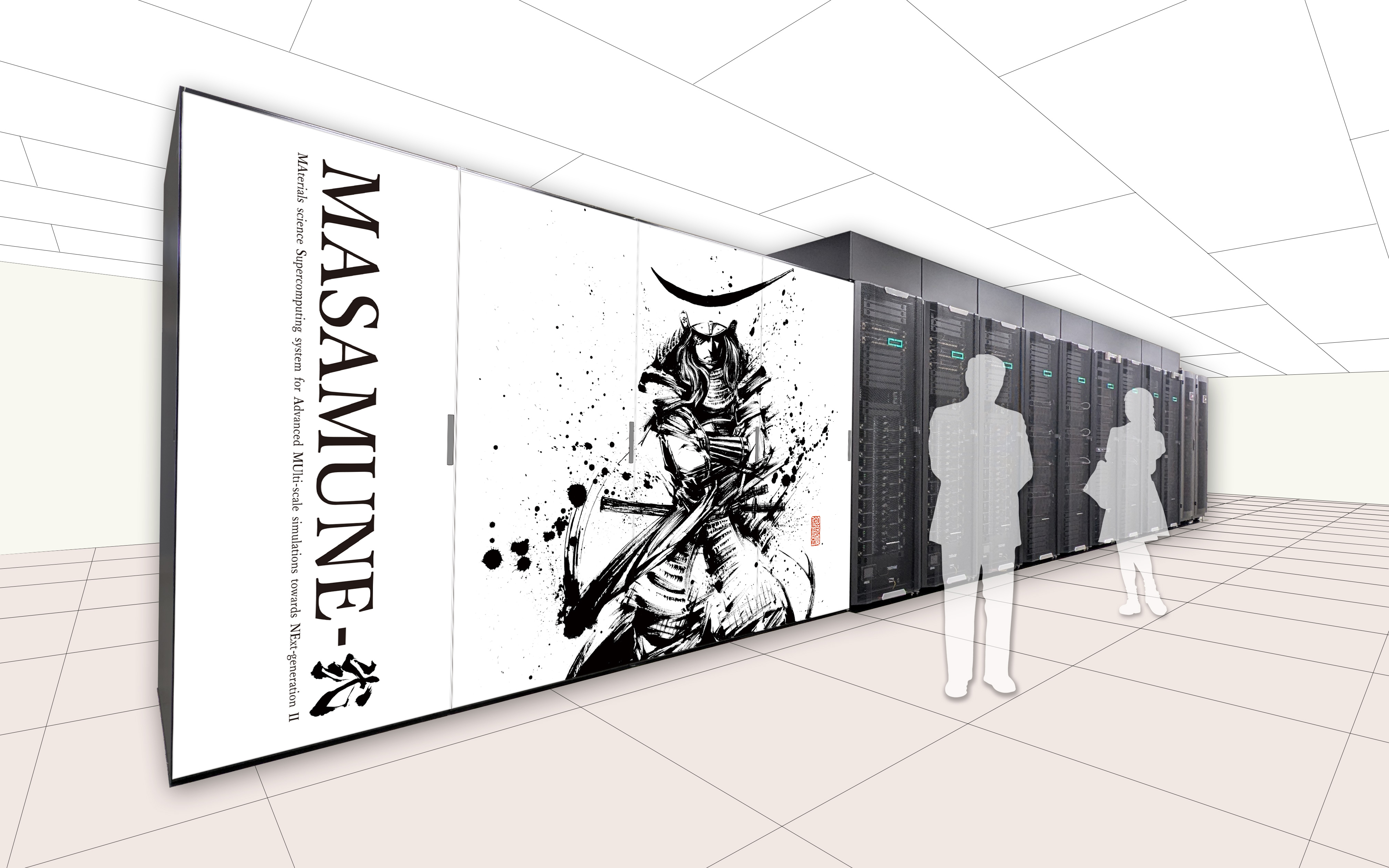

Figure: Appearance of MASAMUNE-II

Supercomputer Configuration

The configuration of the supercomputer is shown below.

System Name	Supercomputer
Model	HPE Cray XD220v	HPE Scale-up Server 3200	HPE Cray XD670
Number of Nodes	Standard Node: 120 Large Memory Node: 7	2 nodes	11 nodes	2 nodes
CPU	Intel Xeon Platinum 8480+ Frequency: 2.0 GHz Number of Cores: 56 Cores Installed: 2 / node	Intel Xeon Platinum 8490H Frequency: 1.9 GHz Number of Cores: 60 Cores Installed: 16 / node	Intel Xeon Platinum 8480+ Frequency: 2.0 GHz Number of Cores: 56 Cores Installed: 2 / node	Intel Xeon Platinum 8570+ Frequency: 2.1 GHz Number of Cores: 56 Cores Installed: 2 / node
Accelerator	-	-	NVIDIA H100 80GB SXM5 Compute Performance: 33.5 TFLOPS (FP64) Installed: 8 / node Memory Bandwidth: 3,352 GB/s	NVIDIA H200 141GB SXM5 Compute Performance: 33.5 TFLOPS (FP64) Installed: 8 / node Memory Bandwidth: 4,800 GB/s
Main Memory Capacity	512 GiB/node 2.0 TiB/node	4.0 TiB/node	1.0 TiB/node	1.0 TiB/node
Total System Performance	4.603 PFLOPS (CPU Performance: 1.119 PFLOPS, GPU Performance: 3.484 PFLOPS)

Storage System Configuration

The storage system disk space (total disk capacity: 5.07 PB) is divided into the user home directory area /home and /work, which is used for temporary storage of program output and intermediate files.

A usage limit (quota) is set for each user in /home, with a default value of 500 GB. If this limit is exceeded, you will not be able to write files. In that case, please delete unnecessary files or apply for a quota extension.

/work can be used as a program execution area and temporary storage area for output files. Please create your own directory and set appropriate access permissions before using it.

For details, please refer to Storage configuration and usage.
